Fritz box 7360
Ensure the Router is connected from WAN (If no WAN port, connect to LAN 1) on Router to GE1/LAN1 on ONT.(Unless we told you GE1/LAN1 is not the active port)
Logging into the gateway:
1. Ensure your device is connected to the Router (preferably via cable)
2. Open a web browser
3. Type the following in the address bar at the top: fritz.box
4. If the first time you have logged in, then it will not require a
5. Select: Skip This Step and Continue
6. This should then give access to the routers user interface
How to add correct settings:
1. From the menu on the left select: Internet
2. From the sub-menu select Account Information
3. In the page locate the Internet Connection tab
Ensure the following settings are changed:
1. Internet Service Provider: Other
2. Name: Leave as blank or just enter Hotshot
3. Connect Via: External Modem or Router
4. Operating Mode: Make Own Connection to the Internet
Click here for an enlarged pic
5. Is Account Information Required?: Yes
6. Username: HotShotFibre
7. Password: UrDa8est
8. Upstream: 320000kbit/s
9. Downstream: 320000kbit/s
10. Select: Change Connection Settings
11. Maintain Permanently: Ticked
12. Use VLAN for Internet Access: Unticked
13. Check the Internet connection after “Apply”: Ticked

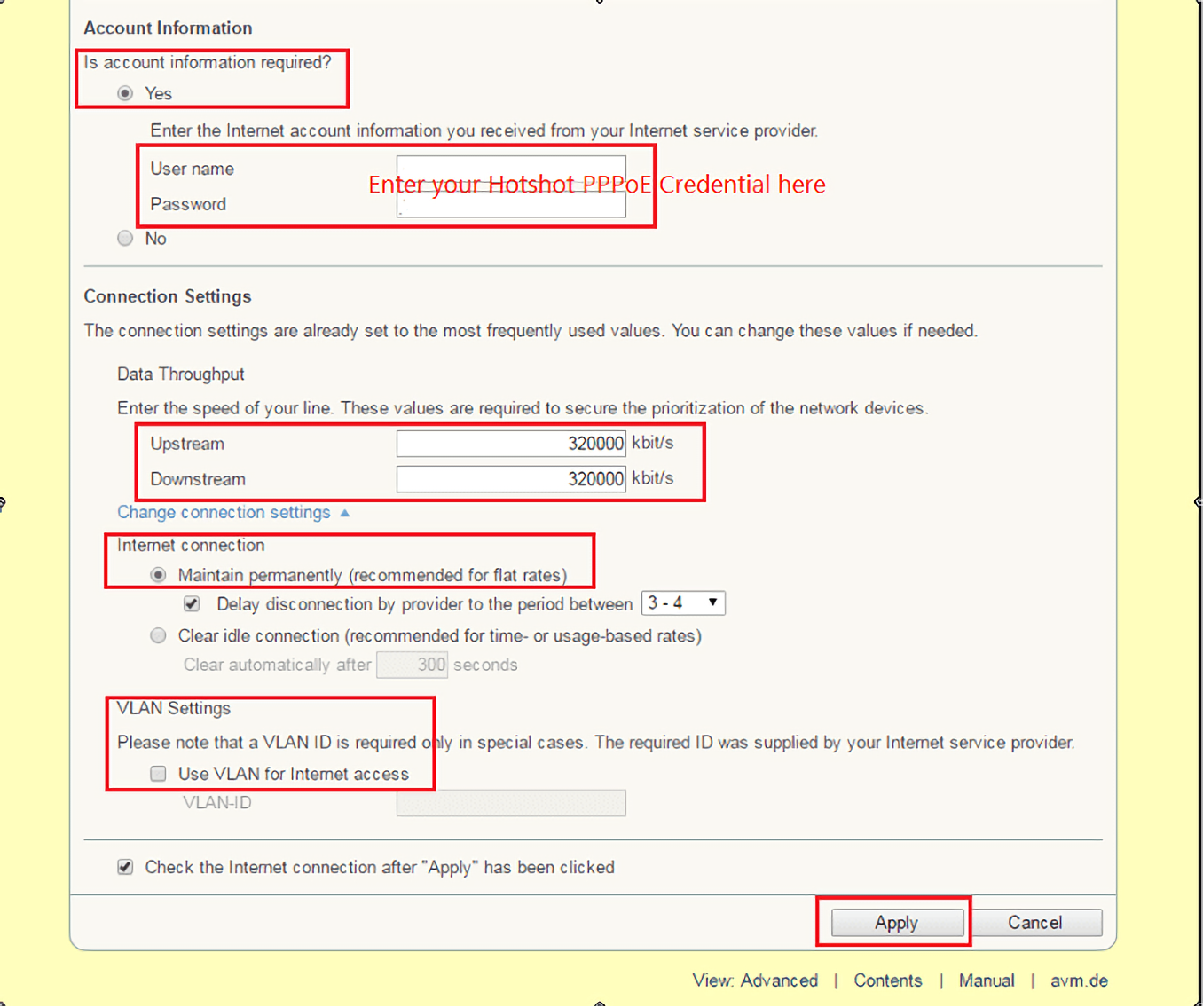

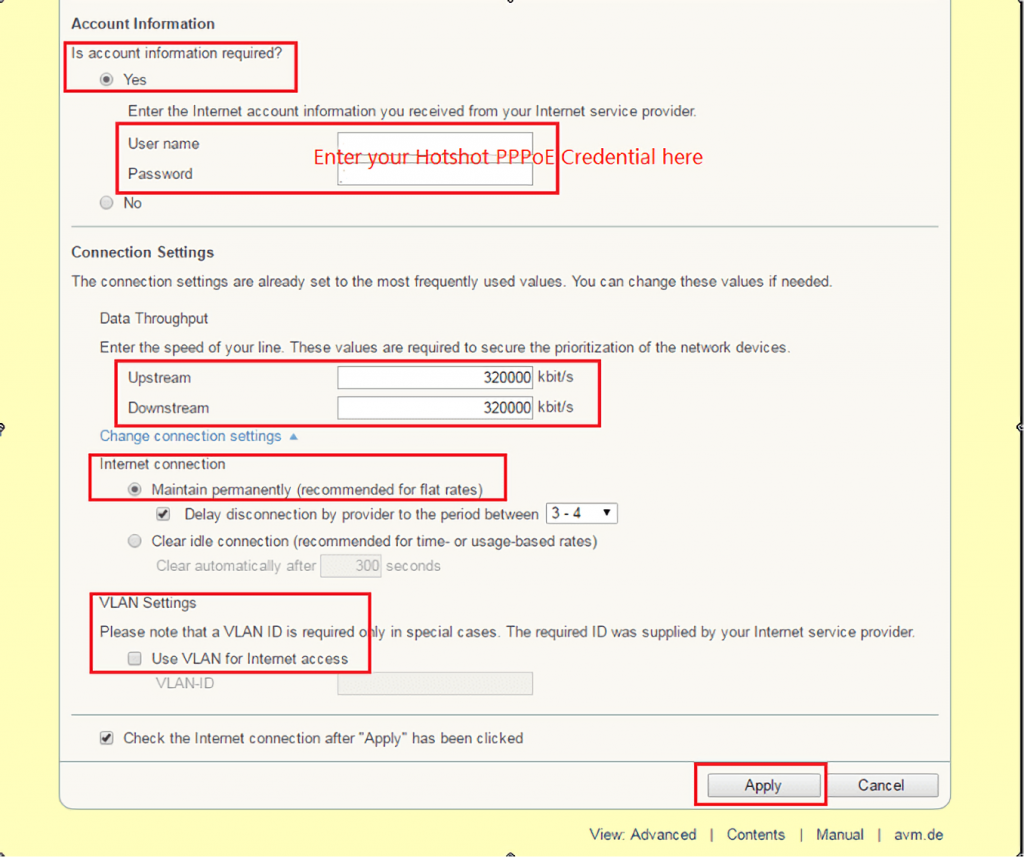

click here for an enlarged pic
14. Click: Apply
15. Click: Submit
You should now be connected to Fibre!
